In Part 2, I gave information about all of the scripts required to do the heavy lifting.

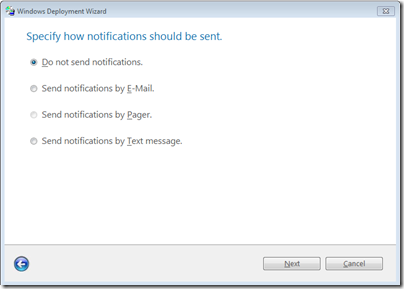

In Part 3, I will show you how to add a custom Pane to the MDT deployment wizard to allow the technician whether or not they want to receive the notification and how it should be sent. This will be done in two sections since MDT 2010 and MDT 2012 handle wizard panes in completely different manners.
MDT 2010
In the Scripts folder of the deployment share, open the DeployWiz_Definition_ENU.xml file. Decide where you want the notifications pane to appear in the wizard and insert the following XML:<Pane id="Notifications"> <Body><![CDATA[<H1>Specify how notifications should be sent.</H1> <table> <tr> <td> <input type=radio name="NotifyMethod" id="NRadio1" checked value="None" language=vbscript AccessKey=D> </td> <td> <Label class="Larger" for=NRadio1 language=vbscript ><u class=larger>D</u>o not send notifications.</Label> </td> </tr> <tr> <td> </td> <td> </td> </tr> <tr> <td> <input type=radio name="NotifyMethod" id="NRadio2" Value="Email" language=vbscript AccessKey=E> </td> <td> <Label class="Larger" for=NRadio2 language=vbscript >Send notifications by <u class=larger>E</u>-Mail.</Label> </td> </tr> <tr> <td> </td> <td> </td> </tr> <tr> <td> <input type=radio name="NotifyMethod" id="NRadio3" value="Pager" language=vbscript oAccessKey=P> </td> <td> <Label class="Larger" for=NRadio3 language=vbscript >Send notifications by <u class=larger>P</u>ager.</Label> </td> </tr> <tr> <td> </td> <td> </td> </tr> <tr> <td> <input type=radio name="NotifyMethod" id="NRadio4" value="Text" language=vbscript AccessKey=T> </td> <td> <Label class="Larger" for=NRadio4 language=vbscript >Send notifications by <u class=larger>T</u>ext message.</Label> </td> </tr> <tr> <td> </td> <td> </td> </tr> </table> <label class=ErrMsg id=NoNotifyFile>Notification list not found!</label>]]></Body> <Condition><![CDATA[UCase(Property("SkipNotifications"))<>"YES"]]></Condition> <Initialization><![CDATA[InitializeNotifications]]></Initialization> <Condition><![CDATA[ FindTaskSequenceStep("//step[@name='Send Notification']", "ZTINotify.wsf" ) ]]></Condition> </Pane>
This will add a custom pane that will appear in the wizard as long as there is a step in the task sequence called “Send Notification” calling the ZTINotify.wsf script and the property SkipNotifications is not set to YES.
In addition, we need some initialization code.
Open DeployWiz_Initialization.vbs from the Scripts folder of the deployment share. Scroll to the bottom and add the following function:
Function InitializeNotifications
Dim oXML
Dim sUser
Dim sXMLFile
Dim sEmail
Dim sPager
Dim sText
Dim RootNode
Dim SubNode
Dim Attribute
Dim ChildNode
Set oXML = CreateObject("Microsoft.XMLDOM")
oXML.async = false
sUser = Ucase(property("UserID"))
sXMLFile = Property("DeployRoot") & "\Control\NotifyList.xml"
sEmail = "None"
sPager = "None"
sText = "None"
if not oXML.load (sXMLFile) Then
NoNotifyFile.style.display = "inline"
NRadio2.Disabled = True
NRadio3.Disabled = True
NRadio4.Disabled = True
Exit Function
Else
NoNotifyFile.style.display = "none"
end If
Set RootNode = oXML.selectNodes("//address[@UserID='" & UCase(sUser) & "']")
If RootNode.length = 0 Then
NRadio2.Disabled = True
NRadio3.Disabled = True
NRadio4.Disabled = True
Else
For Each SubNode In RootNode
For Each Attribute In SubNode.attributes
If LCase(sUser) = LCase(Attribute.text) Then
For Each ChildNode In SubNode.childNodes
Select Case ChildNode.nodeName
Case "email"
sEmail = ChildNode.text
Case "pager"
sPager = ChildNode.text
Case "text"
sText = ChildNode.text
End Select
Next
End If
Next
Next
End If
If sEmail <> "None" And InStr(sEmail, "@") Then
NRadio2.Disabled = False
Else
NRadio2.Disabled = True
End If
If sPager <> "None" And InStr(sPager, "@") Then
NRadio3.Disabled = False
Else
NRadio3.Disabled = True
End If
If sText <> "None" And InStr(sText, "@") Then
NRadio4.Disabled = False
Else
NRadio4.Disabled = True
End If
End Function
This function will parse the NotifyList.xml and enable or disable the different notification types, depending on whether or not they have values.
MDT 2012
As I mentioned earlier, MDT 2012 handles wizard panes very differently (better in my opinion) than MDT 2010.
To implement the same notifications pane in MDT 2012, we have to first create a file called DeployWiz_Notify.xml in the Scripts folder of the deployment share. It should have the following contents:
<?xml version="1.0" encoding="utf-8"?>
<!--
' // ***************************************************************************
' //
' // Copyright (c) Microsoft Corporation. All rights reserved.
' //
' // Microsoft Deployment Toolkit Solution Accelerator
' //
' // File: DeployWiz_Definition_ENU.wsf
' //
' // Version: 6.0.2223.0
' //
' // Purpose: Main Client Deployment Wizard Defintion File
' //
' // ***************************************************************************
-->
<Wizard>
<Global>
<CustomScript>DeployWiz_Notify.vbs</CustomScript>
</Global>
<Pane id="Notify" title="Notifications">
<Body><![CDATA[<H1>Specify how notifications should be sent.</H1>
<table>
<tr>
<td>
<input type=radio name="NotifyMethod" id="NRadio1" checked value="None" language=vbscript AccessKey=D>
</td>
<td>
<Label class="Larger" for=NRadio1 language=vbscript ><u class=larger>D</u>o not send notifications.</Label>
</td>
</tr>
<tr>
<td>
</td>
<td>
</td>
</tr>
<tr>
<td>
<input type=radio name="NotifyMethod" id="NRadio2" Value="Email" language=vbscript AccessKey=E>
</td>
<td>
<Label class="Larger" for=NRadio2 language=vbscript >Send notifications by <u class=larger>E</u>-Mail.</Label>
</td>
</tr>
<tr>
<td>
</td>
<td>
</td>
</tr>
<tr>
<td>
<input type=radio name="NotifyMethod" id="NRadio3" value="Pager" language=vbscript oAccessKey=P>
</td>
<td>
<Label class="Larger" for=NRadio3 language=vbscript >Send notifications by <u class=larger>P</u>ager.</Label>
</td>
</tr>
<tr>
<td>
</td>
<td>
</td>
</tr>
<tr>
<td>
<input type=radio name="NotifyMethod" id="NRadio4" value="Text" language=vbscript AccessKey=T>
</td>
<td>
<Label class="Larger" for=NRadio4 language=vbscript >Send notifications by <u class=larger>T</u>ext message.</Label>
</td>
</tr>
<tr>
<td>
</td>
<td>
</td>
</tr>
</table>
<label class=ErrMsg id=NoNotifyFile>Notification list not found!</label></Body>
<Initialization><![CDATA[InitializeNotifications]]></Initialization> </Pane> </Wizard>
Now, like MDT 2010, we need our initialization code. In the Scripts directory of the deployment share, create a file called DeployWiz_Notify.vbs with the following contents:
' // *************************************************************************** ' // ' // Copyright (c) Microsoft Corporation. All rights reserved. ' // ' // Microsoft Deployment Toolkit Solution Accelerator ' // ' // File: DeployWiz_Initialization.vbs ' // ' // Version: 6.0.2223.0 ' // ' // Purpose: Main Client Deployment Wizard Initialization routines ' // ' // *************************************************************************** Function InitializeNotifications Dim oXML Dim sUser Dim sXMLFile Dim sEmail Dim sPager Dim sText Dim RootNode Dim SubNode Dim Attribute Dim ChildNode Set oXML = CreateObject("Microsoft.XMLDOM") oXML.async = false sUser = Ucase(property("UserID")) sXMLFile = Property("DeployRoot") & "\Control\NotifyList.xml" sEmail = "None" sPager = "None" sText = "None" if not oXML.load (sXMLFile) Then NoNotifyFile.style.display = "inline" NRadio2.Disabled = True NRadio3.Disabled = True NRadio4.Disabled = True Exit Function Else NoNotifyFile.style.display = "none" end If Set RootNode = oXML.selectNodes("//address[@UserID='" & UCase(sUser) & "']") If RootNode.length = 0 Then NRadio2.Disabled = True NRadio3.Disabled = True NRadio4.Disabled = True Else For Each SubNode In RootNode For Each Attribute In SubNode.attributes If LCase(sUser) = LCase(Attribute.text) Then For Each ChildNode In SubNode.childNodes Select Case ChildNode.nodeName Case "email" sEmail = ChildNode.text Case "pager" sPager = ChildNode.text Case "text" sText = ChildNode.text End Select Next End If Next Next End If If sEmail <> "None" And InStr(sEmail, "@") Then NRadio2.Disabled = False Else NRadio2.Disabled = True End If If sPager <> "None" And InStr(sPager, "@") Then NRadio3.Disabled = False Else NRadio3.Disabled = True End If If sText <> "None" And InStr(sText, "@") Then NRadio4.Disabled = False Else NRadio4.Disabled = True End If End Function
This is the same function we used in MDT 2010 for the initialization code, but in 2012, it is in its own file instead of being added to DeployWiz_Initialization.vbs.
The final step is to tell the wizard to display our pane. That is done by opening DeployWiz_Definition.xml from the Scripts folder of the deployment share. Each pane is listed, so determine where you want your pane displayed and add the following:
<Pane id="Notify" reference="DeployWiz_Notify.xml"> <!--Custom Task Sequence Pane--> <Condition>UCase(Property("SkipNotify"))<>"YES"</Condition> <Condition>FindTaskSequenceStep("//step[@name='Send Notification']", "ZTINotify.wsf" )</Condition> </Pane>
This uses the same conditions as our 2010 pane, so it will display as long as there is a step in the task sequence called “Send Notification” calling the ZTINotify.wsf script and the property SkipNotifications is not set to YES.
